510 connector junked up

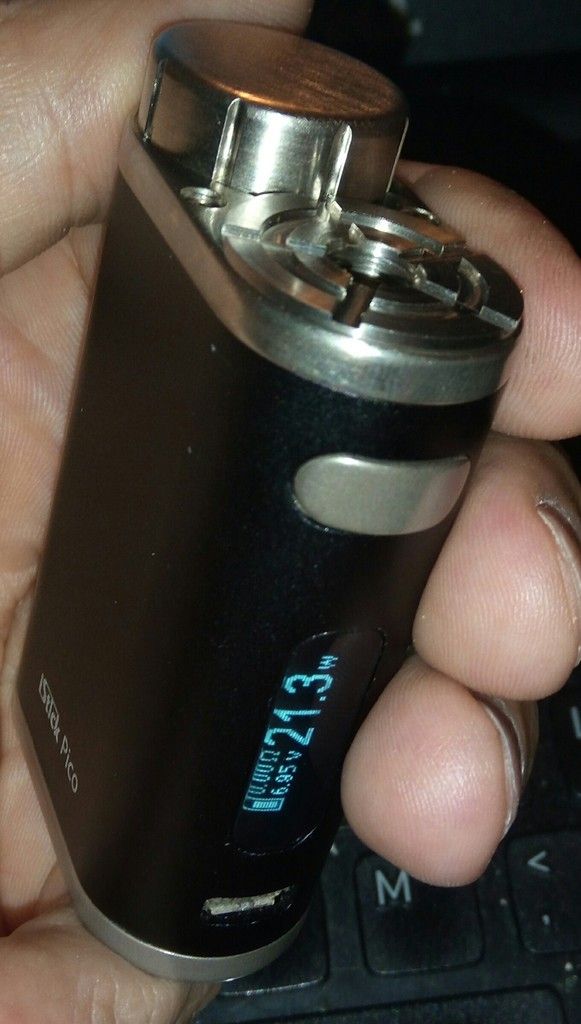

So I fixed it. Took a couple hour this morning but the little Pico's working better than it was now. The 510 connector takes a little adapting to make fit as well as an area of the circuit board at the switch has to be ground away then insulated.
I wouldn't consider this a real novices task, just one for those with a little aptitude and considering the price and experience gained the effort may be rewarding.
The original 510 is press fit so a few punches and a hammer makes short work of that part at least. The rest is a bit of a tight squeeze so a good helping of patience is applicable.



Edited on 11/17/2016 at 10:41 AM. Reason:
Always keep your ear to the ground!
#2 (permalink)      11/17/2016 10:22:52 AM US Central   quote/reply + tips
Avatar
Helder_Santos
Member
  • JoinedOct 2014
  • Posts 452
  • Reviews 184
  • Kudos882
Hello Wylie, what kind of 510 conector did you use?
I'm curious, because I'm thinking of doing the same in my eVic VTC Mini if possible.

And by the way, you've done a great job there ;o)

Edited on 11/17/2016 at 10:26 AM. Reason:
Fasttech, please give us the shipping method 'Spain Express - Priority Line' https://www.fasttech.com/forums/order-support/t/2394666/we-pay-for-delivery-now?2394932
#3 (permalink)      11/17/2016 10:25:50 AM US Central   quote/reply + tips
bensooft
Member
  • JoinedMar 2014
  • Posts 4811
  • Reviews 25
  • Kudos3163
That's a nice job. Kinda makes me wanna do mine even tho it's working fine.
#4 (permalink)      11/17/2016 10:28:24 AM US Central   quote/reply + tips
Avatar
Wylie
Member
  • JoinedMay 2013
  • Posts 5145
  • Reviews 77
  • Kudos3354
+2 details
I used one of these 510s. I haven't taken an eVic VTC apart yet so I'm not sure if these connectors will fit.

Edit: Thanks Bensooft!

Edited on 11/17/2016 at 10:29 AM. Reason:
Always keep your ear to the ground!
#5 (permalink)      11/17/2016 1:30:38 PM US Central   quote/reply + tips
Avatar
Wylie
Member
  • JoinedMay 2013
  • Posts 5145
  • Reviews 77
  • Kudos3354
+1 details
Thank you Helder_Santos!
Hope you manage to get your eVic VTC fixed.
Always keep your ear to the ground!
#6 (permalink)      11/17/2016 3:16:44 PM US Central   quote/reply + tips
Avatar
Helder_Santos
Member
  • JoinedOct 2014
  • Posts 452
  • Reviews 184
  • Kudos882
Wylie wrote:

Thank you Helder_Santos!
Hope you manage to get your eVic VTC fixed.


Thanks Wylie for your reply, I have some 510s that I bought here and have been saving for a day if I need to change the 510 in one of mine Box Mods.
But I have to take time to get down to business and disassemble the eVic VTC Mini.
I searched youtube and did not find anything that would help me.

510s that I purchased here:

SKU 3464000

SKU 5429400 I think this small size could fit

SKU 2294303

SKU 2095500

SKU 2038801 And probably this one also fits

SKU 2013500

Fasttech, please give us the shipping method 'Spain Express - Priority Line' https://www.fasttech.com/forums/order-support/t/2394666/we-pay-for-delivery-now?2394932
#7 (permalink)      11/17/2016 3:26:57 PM US Central   quote/reply + tips
Avatar
Vapor
Member
  • JoinedApr 2013
  • Posts 25355
  • Reviews 153
  • Kudos20437
Just to be very clear is SKU 2408100 the connector in your photos? Thanks...
We’re paying congress millions to do nothing. We’re paying Trump nothing to do everything.
#8 (permalink)      11/17/2016 3:48:49 PM US Central   quote/reply + tips
Avatar
Wylie
Member
  • JoinedMay 2013
  • Posts 5145
  • Reviews 77
  • Kudos3354
+2 details

510s that I purchased here:


You've gathered a good collection something should work when you get the time.

Just to be very clear is SKU 2408100 the connector in your photos? Thanks...


Yes that would be the connector.
The brass cup that holds the spring in the plastic has to be ground to make space for the circuit board and after soldering the positive wire in place the base of the positive pin should be ground as well.

There's a resistor on the board the positive pin could potentially contact if the pin isn't ground/shortened.


Edited on 11/17/2016 at 3:49 PM. Reason:
Always keep your ear to the ground!
#9 (permalink)      11/17/2016 4:05:34 PM US Central   quote/reply + tips
Avatar
Wylie
Member
  • JoinedMay 2013
  • Posts 5145
  • Reviews 77
  • Kudos3354
+3 details
This is pretty lame, I went to post a picture/review and I guess FT doesn't remember me buying these here, they're in my order history. LOL

Community » Reviews »
Reviews are accepted from owners only
If you ordered this item using another FastTech account, please login using your other account.

Write a Review
Upload a Photo
Post a Video
I'll just post the picture here than.


Edited on 11/17/2016 at 4:11 PM. Reason:
Always keep your ear to the ground!
#10 (permalink)      11/17/2016 4:21:20 PM US Central   quote/reply + tips
Avatar
Vapor
Member
  • JoinedApr 2013
  • Posts 25355
  • Reviews 153
  • Kudos20437
In the cart... Will end up having an order waiting when I get home... More than likely will need it sooner or later... Thanks again...
We’re paying congress millions to do nothing. We’re paying Trump nothing to do everything.
#11 (permalink)      11/17/2016 4:28:48 PM US Central   quote/reply + tips
Avatar
Wylie
Member
  • JoinedMay 2013
  • Posts 5145
  • Reviews 77
  • Kudos3354
+1 details
Happy to know I might be of some help, you're welcome. :)
Always keep your ear to the ground!
